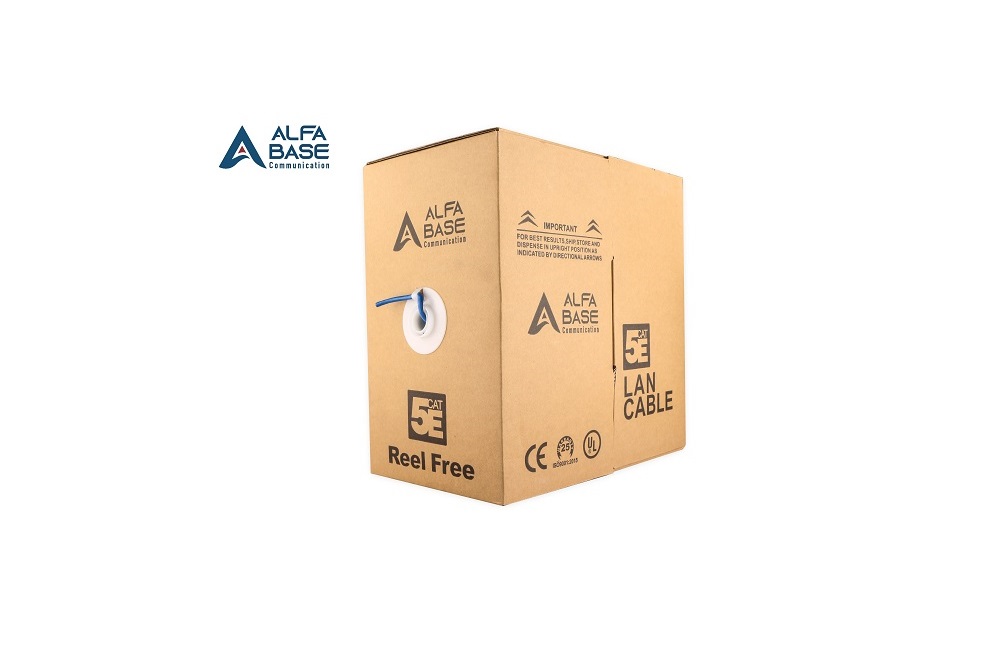

UTP Cable CAT5E

U/UTP CAT5E 24AWG LAN Cable

Description

Structures :

• Construction : U/UTP
• Conductor dimension : 24AWG
• Conductor material : Solid copper

Insulations :

• Insulation material : HDPE
• Insulation dimension : 0.91 mm

Sheaths :

• Outer jacket material : CM/CMR PVC, LSZH
• Thickness : 0.6 mm
• Outer O.D. : 5.2 mm
• Outer jacket color : as customer request
• Ripcord : Yes

Electrical Characteristics :

• 1 – 350 MHz impedance 100±15Ω
• Max. delay skew ≤ 45/100m
• Max. conductor resistance 95Ω/km (@20 °C)
• Max. conductor resistance unbalance 5% (@20 °C)
• Min. insulation resistance 5000MΩ/km
• Nom. mutual capacitance ≤ 5.6 nF/100M @1KHz
• Nominal velocity of propagation 69%

Mechanical Characteristics

• Outer jacket tensile strength ≥ 13.5 Mpa
• Outer jacket elongation ≥ 150%
• Outer jacket aging condition 100 °C x 168 hrs.
• After aging, tensile strength ≥ 12.5 Mpa
• After aging, elongation ≥ 125%
• Cold bend no crack (@-20 °C x 4 hrs.)
• Hot impact no crack (@150 °C x 4 hrs.)
