Description

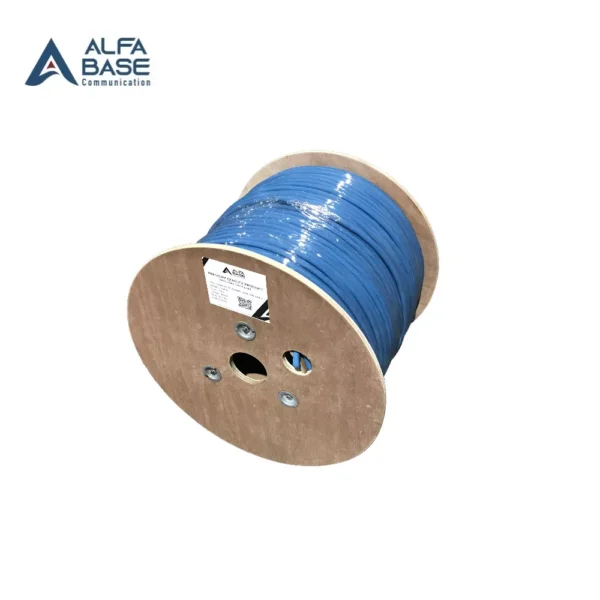

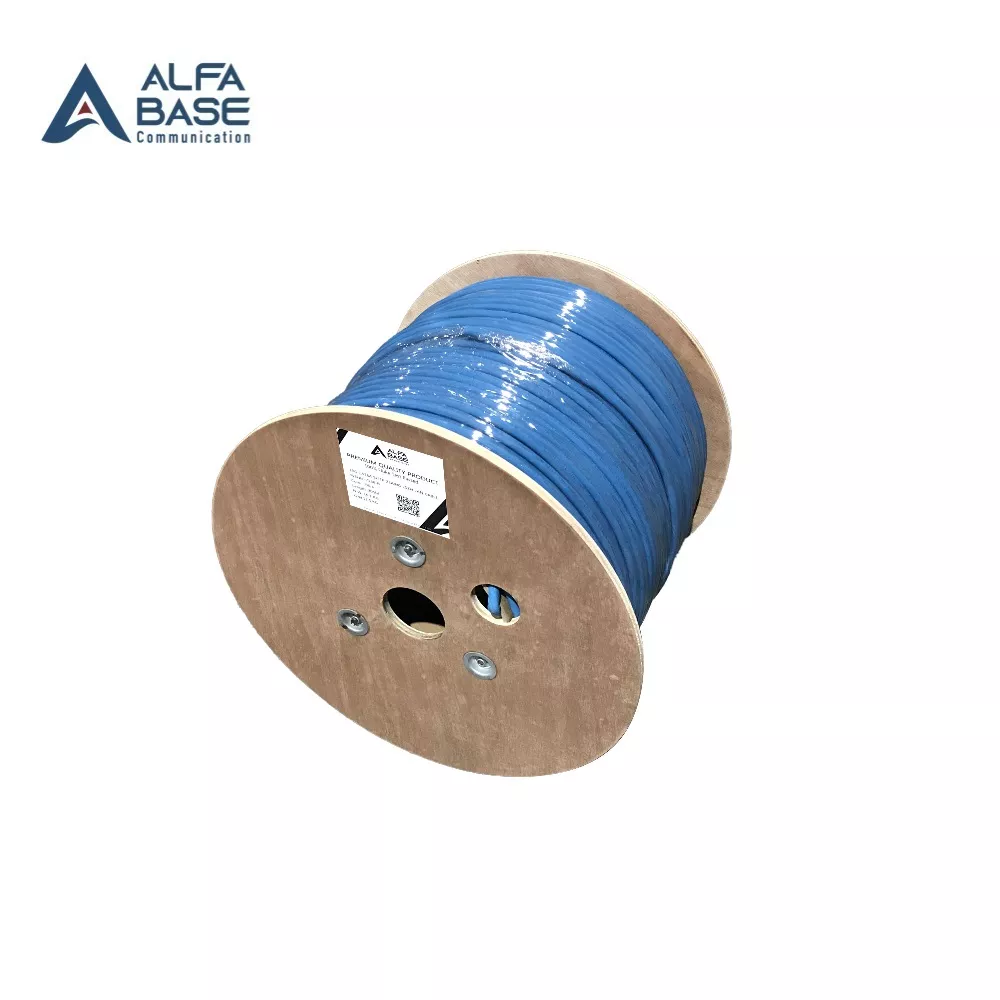

S/FTP 4P 23AWG LSZH LAN CABLE BLUE,305M
สายแลน S/FTP แบบ Cat6A สำหรับเชื่อมต่อสัญญาณคอมพิวเตอร์
Shielded S/FTP Cable CAT6A 23AWG LSZH 305M
Structures :
- Construction : S/FTP
- Conductor dimension : 23AWG (0.57±0.01mm)
- Conductor material : Solid copper
- 1st Shielded : AL-Foil
- 2nd Shielded : AL-MG braid
- Shield coverage : ≥40%
- Drain wire : 0.40 mm Tinned copper
Insulations :
- Insulation material : FOAM PE&HDPE
- Insulation dimension : 1.38±0.05 mm
Sheaths :
- Outer jacket material : LSZH
- Outer jacket color : as customer request
- Ripcord : Yes
- Overall diameter : 7.7±0.3 mm
P/N | DESCRIPTIONS |
---|---|
AL-7136-BK | Shielded S/FTP Cable CAT6A 23AWG LSZH Black 305M “ALFA BASE” |
AL-7136-GR | Shielded S/FTP Cable CAT6A 23AWG LSZH Gray 305M “ALFA BASE” |
AL-7136-B | Shielded S/FTP Cable CAT6A 23AWG LSZH Blue 305M “ALFA BASE” |
Code; BK(Black), AQ(Aqua), W(White), R(Red), Y(Yellow), G(Green), GR(Gray), B(Blue) |
