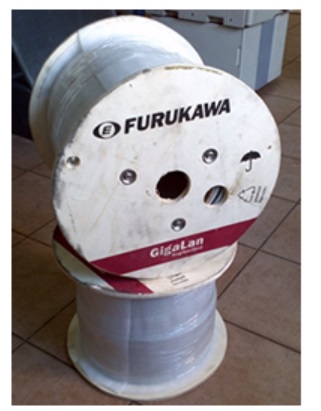

DATA CABLE GIGALAN F/UTP CAT 6A

DATA CABLE GIGALAN FUTP CAT 6A

Features 4 pairs twisted cable, using solid bare copper, 23 AWG, insulated with a special
compound. External jacket using LSZH in accordance with IEC60332-3.
Applications

1. Exceeds physical and electrical requirements ofANSI/TIA-568-C.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) 10GIGABIT ETHERNET, IEEE 802.3an, 10 Gbps;
b) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
c) 100BASE-TX, IEEE 802.3u, 100 Mbps;
d) 100BASE-T4, IEEE 802.3u ,100 Mbps;
e) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
f) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
g) TP-PMD , ANSI X3T9.5, 100 Mbps;
h) 10BASE-T, IEEE802.3, 10 Mbps;
i) TOKEN RING, IEEE802.5 , 4/16 Mbps;
j) 3X-AS400, IBM, 10 Mbps;
k) Support POE+ (in accordance with IEEE 802.3at e TSB-184)
4. Solutions: Data Center, Commercial Building, Government, Financial, Health,
Education.
Standards Compliance ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5, IEC 60332, IEC 60754-2 (Acidity of
smoke), IEC 61034-2 (smoke density) and compliance to CENELEC/EN 50288-10-1
and EN 50173.

Certifications ETL Listed
CMR/LSZH
G101002425
ETL Verified 3130563
ETL 4
connections
101795378CRT-001a
Anatel 01562-10-00256
ABNT EcoLabel 199.004
Product code 2337XXXX
XXXX = serial number
CPR Dca
Constructive characteristic
Conductor Solid bare copper with nominal diameter 23AWG.
Insulation High density Polyethylene. Nominal diameter 1.0mm
Insulation Resistance 10000 MΩ.km
Number of Pairs 4 pairs, 23AWG
Pair All pairs are twisted in such way to reduce Crosstalk effects. Each conductor is
identified according with the following color sequence.
Color Codes Pair Conductor “A” Conductor “B”
1 White Blue
2 White Orange
3 White Green
4 White Brown
The color pattern above references the ANSI\TIA-568-C.2 item 5.3.3, which presents
two configuration options possible, the Furukawa in this specification illustrates only
one.
Cabling All pairs are assembled, making the core cable. Will be used a central member
(Cross web) made of a thermoplastic material to separate all 4 pairs.
Ripcord With ripcord
Shield Over the cable core is used an aluminum foil tape
Sheath LSZH compound, flame retardant, suitable to meet the cable flame rating class
Nominal Diameter 7.5 mm
Drain Wire 26 AWG wire in contact with the foil.
Color Grey, Blue, Green or Orange. Other colors under consult.
Cable Weight 58 kg/km
Physical Characteristics

Cable Flammability Rating LSZH: Cable shall comply with IEC 60332 Part 3-25: “Test for vertical flame spread of
vertically mounted bunched wires or cables”
LSZH-1: Cable shall comply with IEC 60332 Part 1-2: “Test for vertical flame
propagation for a single insulated wire or cable”

ET2265 GIGALAN AUGMENTED CABLE CAT6A F-UTP 23AWGX4P LSZH
