Product details

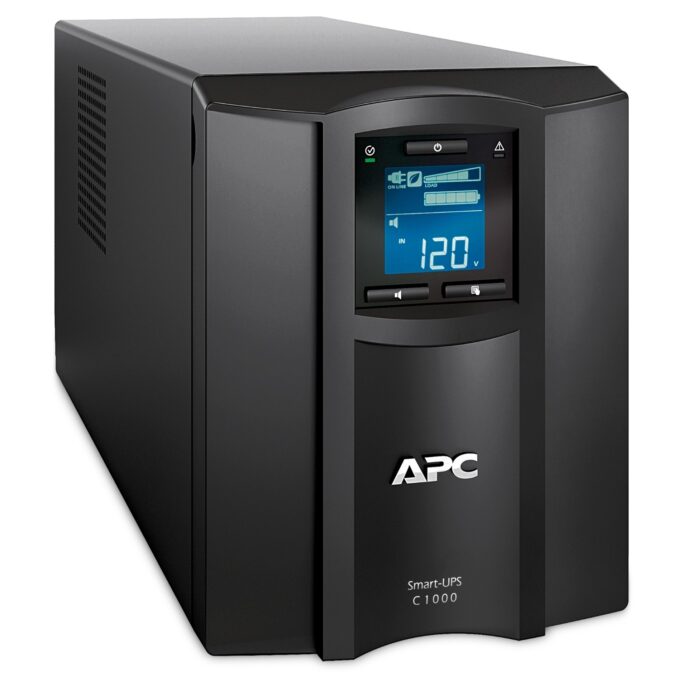

APC Smart-UPS C, Line Interactive, 1000VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD
M a i n
M a i n I n p u t V o l t a g e 2 3 0 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 600 W
Rated power in VA 1000 VA
Input Connection Type IEC 320 C14
Output connection type 8 IEC 60320 C13
Battery type Lead-acid battery
Provided equipment Power cord
USB cable
Complementary
Software package SmartConnect software for remote power monitoring feature availability varies by terms of use
General
Number of power module filled
slots
0
Number of power module free
slots
0
Product web sub-family Cloud-enabled monitoring
Redundant No
Physical
Colour Black
Height 21.9 cm
Width 17.1 cm
Depth 43.9 cm
Net weight 17.27 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible Yes
Input
Input voltage limits 170…300 V adjustable
180…287 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Output
Harmonic distortion Less than 5 %
Maximum configurable power in
VA
1000 VA
Maximum configurable power in
W
600 W
Transfer time 6 ms typical : 10 ms maximum
UPS type Line interactive
Wave type Sine wave
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certifications CE
GOST
VDE
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level 41 dBA
Heat dissipation 100 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for
operation
0…40 °C
Ambient air temperature for
storage
-15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
Batteries & Runtime
Extended runtime 0
Number of battery filled slots 0
Number of battery free slots 0
