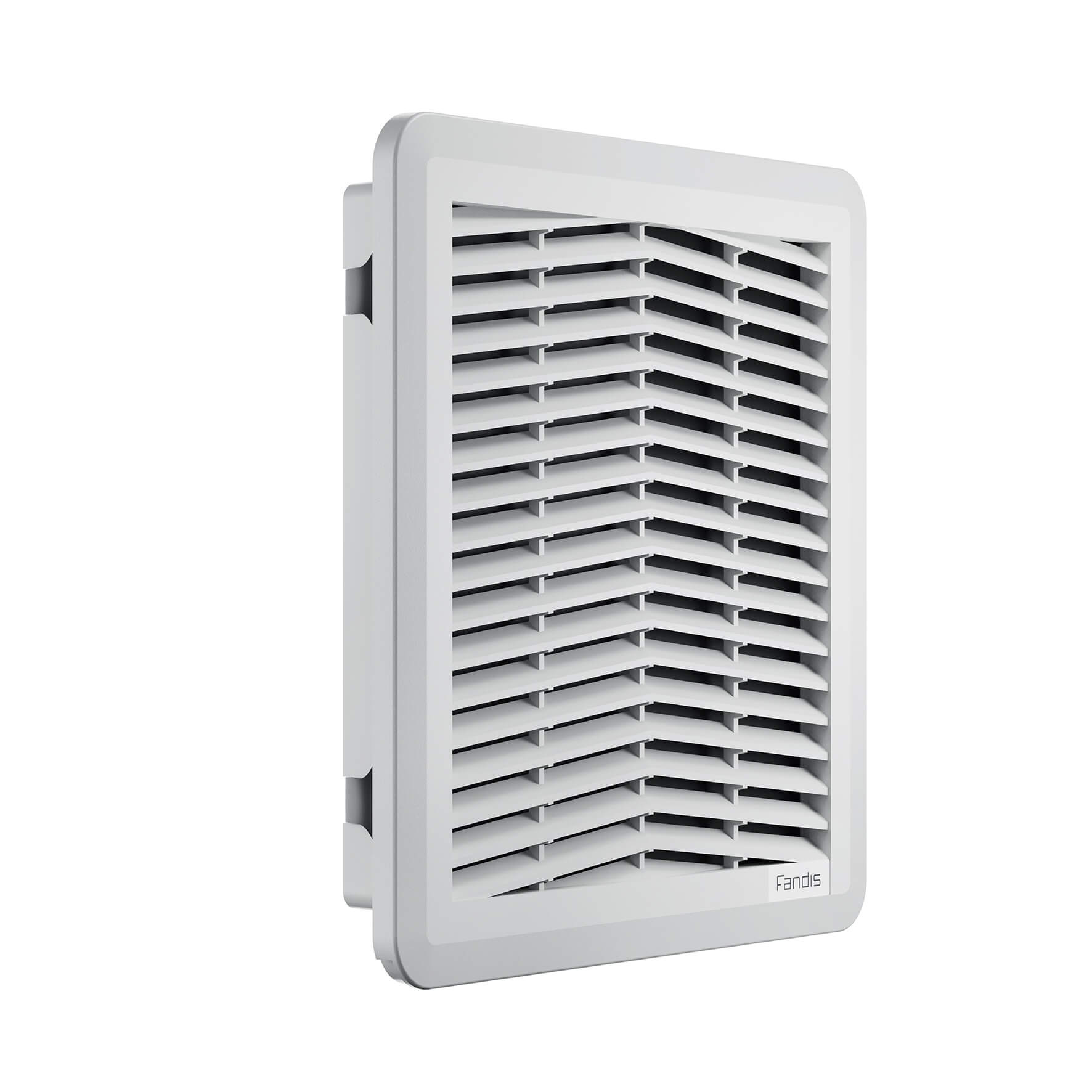

ฟิลเตอร์ตู้ไฟฟ้า 204MM X 204MM IP55 RAL7035
฿1,000.00
FF ฟิลเตอร์ ตู้คอนโทรล ตู้ไฟฟ้า กันน้ำ กันฝุ่น IP55
- Estimated delivery time 14-30 days
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 15 × 1.5 cm |
Customers Reviews
You may also like…
Related products
Filter kit 325MM X 325MM IP 55 TYPE 12 RAL 7035
฿2,000.00
FF20U5 - FILTER KIT RAL 7035
APPROVALS
| Approvals | CE; cURus; cULus; cCSAus; UKCA |
|---|
ENVIRONMENTAL AND THERMAL DATA
| IP Protection Degree | IP55 |
|---|---|
| Operating Temperature | -30÷60 °C |
| Storage Temperature | -40÷70 °C |
GENERIC DATA
| Casing Material | PC/ABS UL94 V-0 |
|---|---|
| Filter Class | G4 EN 779 |
| Filter Class | ISO coarse 75% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| RAL Number | 7035 |
| Spare Parts Filter Media | M20FPF |
MECHANICAL DATA
| Mounting Wall Thickness | 1.3-3.7 mm |
|---|
UL DATA
| UL Environmental Type Rating | Type 12 |
|---|---|
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 60 °C |
Categories: AIR CONDITIONER I แอร์ตู้คอนโทรล
แอร์ตู้ไฟ 50W
แอร์ตู้คอนโทรลขนาดเล็ก เหมาะสำหรับตู้ไฟฟ้าขนาดเล็กเช่น ตู้ touch screen
Technical data
APPROVALS
Approvals CE; UKCA
PERFORMANCE
Rated Cooling Power
57 W
194 BTU/hr
ELECTRICAL DATA
Rated Voltage 12 V d.c.
Rated Current 5.0 A
Rated Power 60 W
Operating Voltage 7-13 V d.c.
Max Current 5.8 A
GENERIC DATA
Weight
5.39 Kg
11.88 lb
Casing Material PC/ABS
RAL Number 7035
Electrical Connection Screwless Terminal Block
Fixing System Screws
ENVIRONMENTAL AND THERMAL DATA
IP Protection Degree IP55 Warm Side
Fan
Operating Temperature
-10÷70 °C
14÷158 °F
